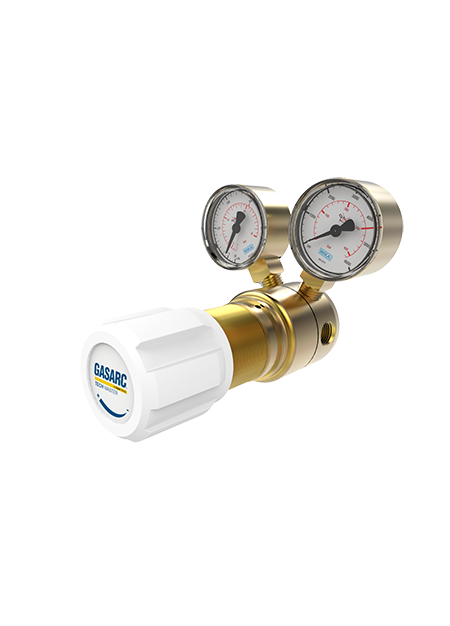

GPS420 SERIES
4.5 Purity Single Stage Brass Barstock Piston Cylinder Regulator
Tech Master GPS420 Series single stage piston cylinder regulators are designed for primary pressure gas control of non-corrosive or toxic, technical grade gases up to 4.5 purity (99.995%), on applications where slight pressure variation from decreasing cylinder pressure is acceptable.
■ GPS421 Series | Single Stage Piston Cylinder Regulator, FKM Seal
■ GPS422 Series | Single Stage Piston Cylinder Regulator, EPDM Seal
Description
■ Five port configuration
■ Front & rear panel mounting capabilities
■ Encapsulated seat design
■ Low wetted surface area
■ Full range of inlet and outlet fittings
■ Base and side entry
■ Body Brass Barstock
■ Bonnet Brass Barstock
■ Piston Brass
■ Seal FKM / EPDM
■ Valve Seat Polyamide (Nylon®)
■ Filter 10 Micron 316L Stainless Steel
■ Maximum Inlet Pressure 60 bar (870 PSI) 300 bar (4350 PSI)*
■ Delivery Pressure Range 20 bar (300 PSI) 50 bar (725 PSI) 100 Bar (1450 PSI) 200 bar (2900 PSI) 250 bar (3630 PSI)
■ Gauges 50mm (2”) Diameter
■ Ports 1/4” NPT Female
■ Temperature Range -20° C to +60° C (-4° F to +140° F)
■ Weight 1.5 kg (3.3 lbs)**
* Subject to cylinder connection – ** Cyliner connection not included
