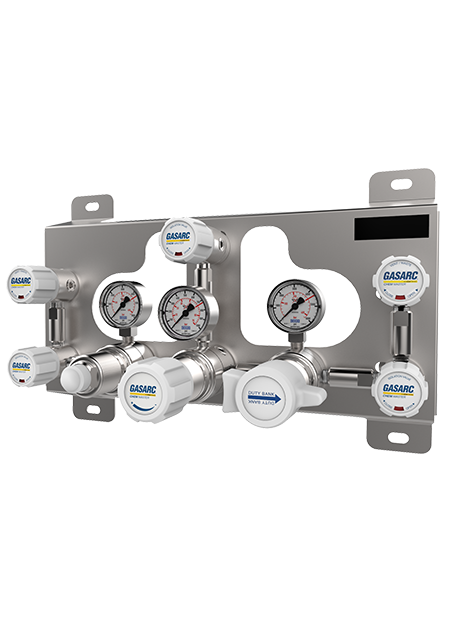

SGD6240 SERIES
6.0 Purity Two Stage Stainless Steel Piston Differential Autochange Gas Control Panel
The Chem Master SGD6240 series two stage differential autochange control panels are designed for primary pressure gas control of corrosive, toxic or high purity gases up to grade
6.0 purity (99.9999%), on gas distribution systems where constant delivery pressure is required.
■ SGD6241 Series | Two Stage Twin Cylinder
Piston Differential Autochange Gas Control Panel, FKM Seal
■ SGD6242 Series | Two Stage Twin Cylinder
Piston Differential Autochange Gas Control Panel, EPDM Seal
Description
■ High pressure isolation valves
■ High pressure purge facility
■ Two Stage pressure regulation
■ Process line isolation valve
■ Encapsulated valve design
■ Twin cylinder configuration
■ Body 316L Stainless Steel
■ Bonnet Nickel Plated Brass Barstock
■ Piston 316L Stainless Steel
■ Seal Option FKM / EPDM
■ Valve Seat PCTFE
■ Filter 10 Micron 316L Stainless Steel
■ Maximum Inlet Pressure 60 bar (870 PSI) 300 bar (4350 PSI)
■ Delivery Pressure Range 20 bar (300 PSI) 50 bar (725 PSI)
■ Gauges 50mm (2”) Diameter
■ Ports 1/4” NPT Female
■ Temperature Range -20° C to +60° C (-4° F to +140° F)
■ Flow Coefficient (Cv) 0.078
■ Helium Leak Integrity 1×10-9 mbar l/s
■ Weight 8.0 kg (17.64 lbs) ****
*** Nace and 3.1 material certificates available on request.
Please contact the sales office for further information.
**** Subject to final configuration.
