SGM6030 SERIES

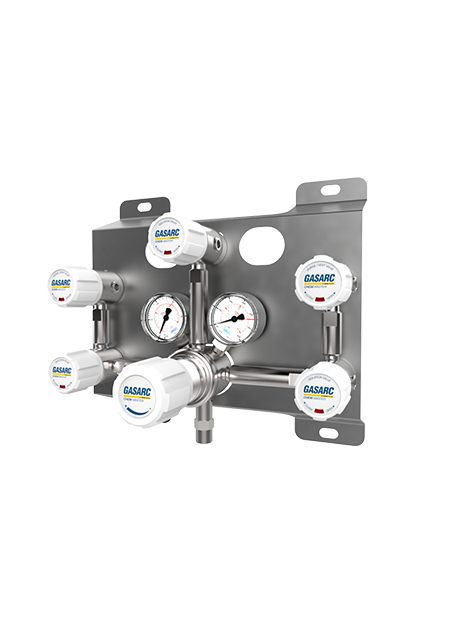

6.0 Purity Single Stage Stainless Steel Diaphragm Manual Change Gas Control Panel
The Chem Master SGM6030 series single stage manual change control panels are designed for primary pressure gas control of corrosive, toxic or high purity gases up to grade 6.0 purity (99.9999%), on gas distribution systems where slight pressure variation is acceptable.
■ SGM6031 Series | Single Stage Twin Cylinder Diaphragm Manual Gas Change Control Panel, FKM Seal, FFKM Pressure Relief Valve
■ SGM6032 Series | Single Stage Twin Cylinder Diaphragm Manual Gas Change Control Panel, EPDM Seal, FFKM Pressure Relief Valve
Description
■ High pressure isolation valves
■ High pressure purge facility
■ Single stage pressure regulation
■ Process line isolation valve
■ Encapsulated valve design
■ Twin cylinder configuration
■ Body 316L Stainless Steel
■ Bonnet Nickel Plated Brass Barstock
■ Diaphragm 316L Stainless Steel
■ Bonnet Seal PTFE
■ Seal Option FKM / EPDM
■ Valve Seat PCTFE
■ Filter 10 Micron 316L Stainless Steel
■ Maximum Inlet Pressure 15 bar (220 PSI) 60 bar (870 PSI) 300 bar (4350 PSI) *
■ Delivery Pressure Range 3.5 bar (50 PSI) 6 bar (90 PSI) 10 bar (150 PSI)
■ Gauges 50mm (2”) Diameter
■ Ports 1/4” NPT Female
■ Temperature Range -20° C to +60° C (-4° F to +140° F)
■ Helium Leak Integrity 1×10-9 mbar l/s
■ Weight 5.0 kg (11.02 lbs) ****
* Subject to cylinder connection
*** Nace and 3.1 material certificates available on request.
Please contact the sales office for further information.
**** Subject to final configuration.
