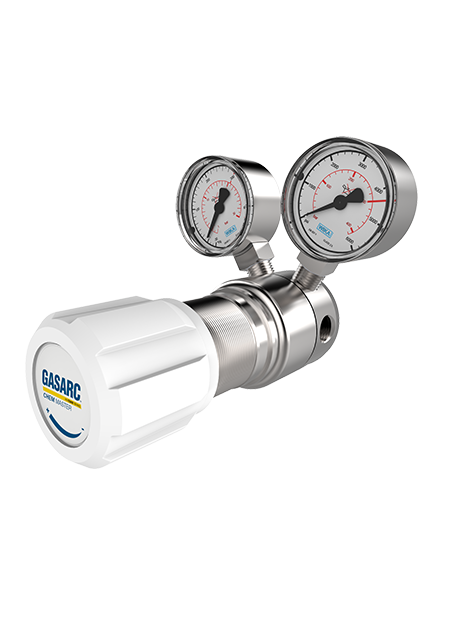

SGS620 SERIES
6.0 Purity Single Stage Stainless Steel Piston Cylinder Regulator
Chem Master SGS620 Series single stage piston cylinder regulators are designed for primary pressure gas control of corrosive, toxic or high puirty gases upto grade 6.0 purity (99.9999%),
on applications where slight variation from decreasing cylinder pressure is acceptable.
■ SGS621 Series | Single Stage Piston Cylinder Regulator, FKM Seal
■ SGS622 Series | Single Stage Piston Cylinder Regulator, EPDM Seal
Description
■ Six port configuration
■ Front and rear panel mounting capabilities
■ Encapsulated seat design
■ Low wetted surface area
■ Full range of inlet and outlet fittings
■ Side entry
■ Body 316L Stainless Steel
■ Bonnet Nickel Plated Brass Barstock
■ Piston 316L Stainless Steel
■ Seal FKM / EPDM
■ Valve Seat PCTFE
■ Filter 10 Micron 316L Stainless Steel
* Subject to cylinder connection – ** Cylinder Connection not included
*** NACE and 3.1 material certificates available on request, please contact the sales
office for further information.
■ Maximum Inlet Pressure 60 bar (870 PSI) 300 bar (4350 PSI) *
■ Delivery Pressure Range 20 bar (300 PSI) 50 bar (725 PSI) 100 bar (1450 PSI) 200 bar (2900 PSI) 250 bar (3625 PSI)
■ Gauges 50mm (2”) Diameter
■ Ports 1/4” NPT Female
■ Temperature Range -20° C to +60° C (-4° F to +140° F)
■ Helium Leak Integrity 1 x 10-9 mbar l/s
■ Weight 1.4 kg (3.1 lb) **
