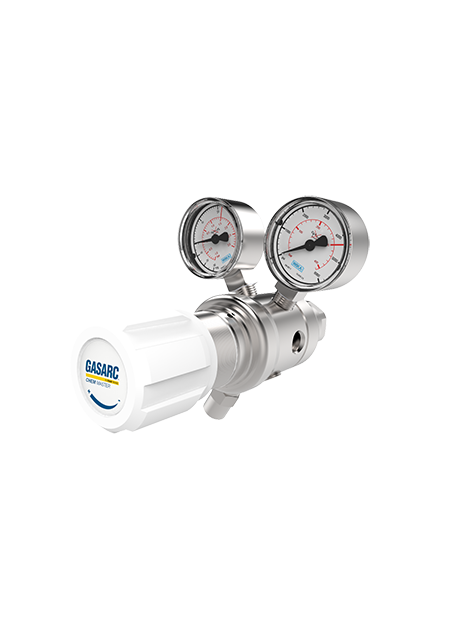

SGT600 SERIES
6.0 Purity Two Stage Stainless Steel Diaphragm Cylinder Regulator
Chem Master SGT600 series two stage diaphragm cylinder regulators are designed for primary pressure gas control of corrosive, toxic, and high purity gases up to grade 6.0 purity (99.9999%), on applications where constant delivery pressure is required as cylinder pressure decreases.
■ SGT601 Series | Two Stage Diaphragm Cylinder Regulator, FFKM Pressure Relief Valve, FKM Seal
■ SGS602 Series | Two Stage Diaphragm Cylinder Regulator, FFKM Pressure Relief Valve, EPDM Seal
Description
■ Five port configuration
■ Front panel mounting capabilities
■ Encapsulated seat design
■ Low wetted surface area
■ Full range of inlet and outlet fittings
■ Side entry
■ Body 316L Stainless Steel
■ Bonnet Nickel Plated Brass Barstock
■ Diaphragm 316L Stainless Steel
■ Seal FKM / EPDM
■ Valve Seat PCTFE
■ Filter 10 Micron 316L Stainless Steel
* Subject to cylinder connection – ** Cylinder Connection not included
*** NACE and 3.1 material certificates available on request, please contact the sales
office for further information.
■ Maximum Inlet Pressure 60 bar (870 PSI) 300 bar (4350 PSI) *
■ Delivery Pressure Range 1.5 bar (22 PSI) 3.5 bar (50 PSI) 6 bar (90 PSI) 10 bar (150 PSI)
■ Gauges 50mm (2”) Diameter
■ Ports 1/4” NPT Female
■ Temperature Range -20° C to +60° C (-4° F to +140° F)
■ Helium Leak Integrity 1 x 10-9 mbar l/s
■ Weight 1.7 kg (3.8 lb) **
